In wastewater treatment plants, one process step makes a huge difference: sludge thickening. It can reduce sludge volume by up to 80% while boosting the efficiency of downstream treatment. By transforming thin sludges into thickened sludge, this process changes both the economics and overall effectiveness of wastewater management.

Every day, millions of gallons of water move through treatment facilities, generating large volumes of dilute sludge. Without proper sludge thickening, handling, transport, and disposal costs can skyrocket. Increasing solids concentration from 1% to 6% can cut the volume from 100 units to just 17, saving millions in operating costs annually. In this guide, we’ll walk through the main sludge thickening methods, explore real-world applications, and share strategic considerations to help operators choose the right technology for their facility’s needs.

What Is Sludge Thickening

Sludge thickening is the process of removing excess water from sewage sludge to increase its solids concentration while keeping it pumpable. Unlike dewatering, which produces a semi-solid cake, thickening keeps the sludge in a liquid state, making it easier to handle and process while significantly reducing its volume. Raw sludge is mostly water, often 98-99% of its total volume. Thickening targets this excess, concentrating the sludge solids from an initial 1-2% up to 4-10%, depending on the method used and the characteristics of the sludge. By doing so, treatment plants can cut storage needs, reduce handling costs, and make downstream processes like digestion or dewatering more efficient. Biosolids are the solid organic matter produced during biological wastewater treatment. They contain valuable nutrients and organic material that can be reused, but their high water content makes handling and processing costly without proper sludge thickening. Different sludge types have distinct thickening needs:

• Primary sludge: Settled solids from initial treatment. Larger, denser particles that settle easily, making them ideal for gravity thickening.
• Waste activated sludge (WAS): Produced from the activated sludge process. Lighter, biologically active solids that often require mechanical or flotation-based thickening methods.

At a molecular level, sludge thickening works by separating water from solids. Depending on the method:

• Gravity settling uses the weight of solids to separate them from water.
• Flotation introduces tiny bubbles that attach to particles, causing them to rise.
• Centrifugal thickening applies centrifugal force to pull solids from the liquid.

The result is a thickened sludge with higher solids concentration, reduced sludge volume, and easier handling for downstream processes like digestion or dewatering.

Why Sludge Thickening Is Critical in Wastewater Treatment

The main reason plants implement sludge thickening is volume reduction. Increasing solids concentration from 1% to 6% can cut total sludge volume by around 83%. That’s a huge difference, saving money and making downstream processes like dewatering and digestion much more efficient. The economic benefits extend across the sludge treatment chain:

• Smaller digesters: Thickened sludge requires less capacity in anaerobic digesters, lowering both capital and operating costs.
• Reduced transportation costs: Less volume means fewer truckloads for sludge removal.
• Improved dewatering efficiency: Higher solids concentration reduces polymer consumption and energy use.

There are also environmental advantages. Proper thickening prevents dilute sludge from overwhelming downstream processes. Without it, waste activated sludge can upset digesters, lower biogas production, and even risk untreated material bypassing treatment, creating potential regulatory issues. Enhanced biogas production is another key benefit. Digesters perform best with feed sludge containing 4% or more total solids. When thickened sludge enters digestion at the right concentration, methane yields can improve by 10% or more, boosting energy recovery and moving wastewater treatment plants closer to energy self-sufficiency. Effective sludge thickening improves operational stability. Capturing solids efficiently prevents them from re-entering secondary treatment, avoiding disruptions to the activated sludge process and maintaining consistent treatment performance. This circular benefit reduces operating costs and supports smoother plant operation overall.

Sludge Thickening Methods and Technologies

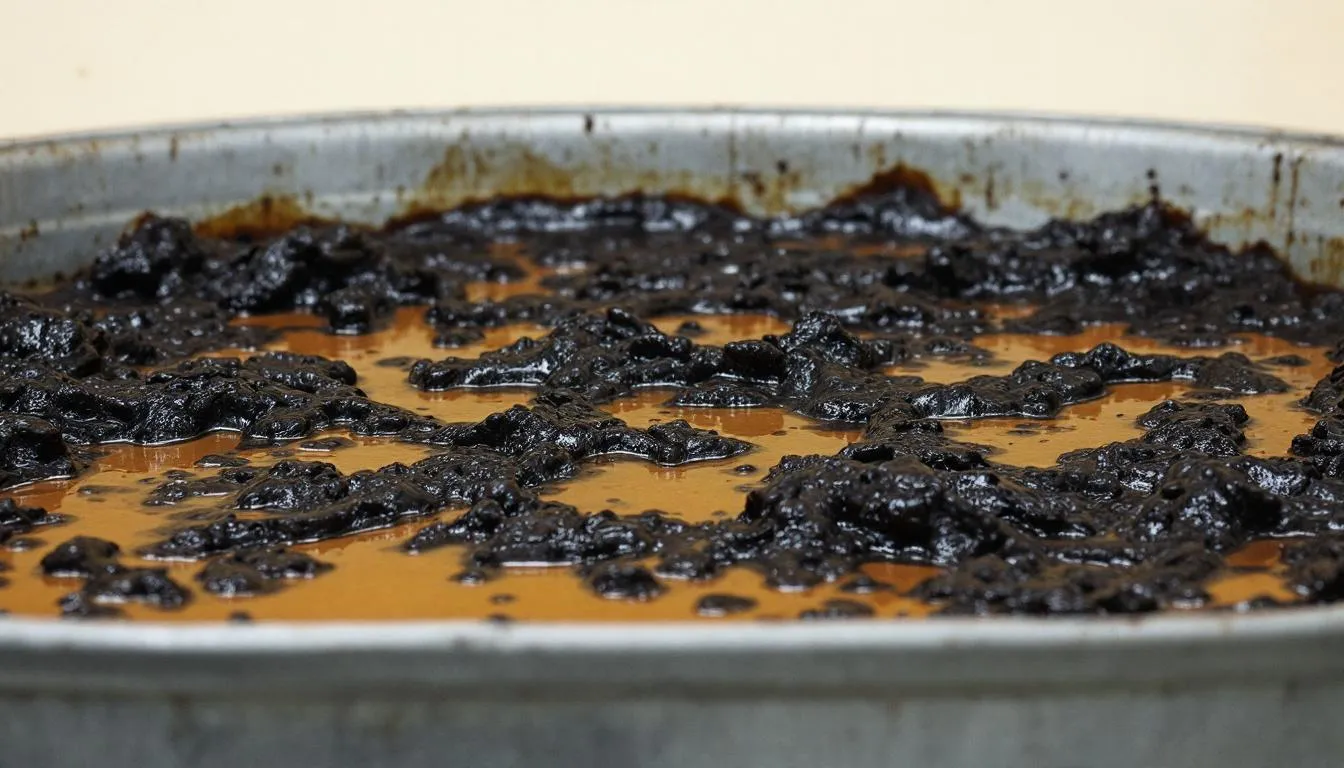

1. Gravity Thickening

Gravity thickening is the simplest way to concentrate thin sludges. It uses specially designed circular tanks where sludge solids settle naturally under gravity.

Key features of a typical gravity thickener:

• Tank size: Diameters of 6–20 meters with water depths of 3–4 meters, providing adequate detention time for effective settling.
• Slow-moving vertical paddles: Gently stir the sludge to prevent bridging and encourage water release without disturbing solids.
• Sloped tank floor: Ratios of 1:4 to 1:6 facilitate sludge collection and removal through bottom withdrawal systems.

Performance:

• Can achieve solids concentrations of 8–10% for primary sludge and digested sludge.
• Works best with sludges that have higher specific gravity, since settling relies on the density difference between solids and water.

Why operators like it:

• Low energy requirements; paddles use minimal electricity.
• Simple design, easy to maintain, mostly routine mechanical checks and tank cleaning.
• Consistent performance for sludges that settle naturally.

Considerations:

• Requires significant space, which may be a challenge for retrofit projects.
• Less effective with waste activated sludge, which is lighter and flocculent, often needing mechanical or flotation-based thickening methods.

Additional notes:

• Primary sludge responds exceptionally well due to larger, denser particles, often reaching 6–8% solids concentration without chemical conditioning.
• Digested sludge also thickens effectively, as digestion produces particles that settle reliably.
• The main limitation is its performance with certain sludge types, driving the development of alternative technologies like dissolved air flotation and centrifugal thickening.

2. Dissolved air flotation (DAF)

Dissolved air flotation (DAF) separates sludge solids from water by introducing tiny bubbles that attach to particles, reducing their apparent density and causing them to float to the surface. This method is particularly effective for waste activated sludge, which often performs poorly in gravity thickening.

How it works:

• Air is dissolved into water under 40–60 psi pressure.
• The pressurized water is released into the flotation tank, creating minute bubbles.
• Bubbles attach to sludge particles, lifting them to the surface for removal.

Key operating variables:

• Pressure levels and recycle ratio
• Feed solids concentration
• Detention time
• Proper air-to-solids ratio and adequate contact time between bubbles and particles

Performance:

• Works best with activated sludge conditioned with polymer to improve particle aggregation.
• Can handle combined primary sludge and waste activated sludge, achieving 4–6% solids concentration.

Equipment includes:

• Pressurization systems
• Flotation tanks with surface skimmers
• Polymer feed systems for chemical conditioning
• Control systems for monitoring air flow, pressure, and chemical dosing

Benefits:

• Effective for light, difficult-to-settle sludges
• Requires less space than gravity thickening
• Provides consistent performance across varying sludge types

Considerations:

• Higher operating costs due to energy use for pressurization
• Ongoing chemical costs for polymer conditioning

3. Centrifugal Thickening

Centrifugal thickening speeds up sedimentation by applying centrifugal force to waste activated sludge, creating separation forces far stronger than gravity alone. This method is especially effective for biological sludges that resist conventional settling.

Key features:

• Compact, self-contained units that require minimal space compared to gravity thickeners
• Can process several cubic meters per hour, suitable for large municipal plants with limited space
• Performance depends on feed rate, rotational speed, and chemical conditioning

Performance:

• Without chemical aids: 3–4% solids concentration
• With polymer addition: 5–6% or higher
• Best suited for activated sludge and other biological solids

Considerations:

• High capital costs and energy use (1–2 kWh per cubic meter processed)
• Ongoing maintenance required due to rotating components
• Not ideal for primary sludge with abrasive materials (sand, grit), which increase wear

Centrifugal thickening is often the go-to choice when space is limited but consistent sludge thickening performance is needed.

4. Rotary Drum Thickeners

Rotary drum thickeners use a slowly rotating, perforated drum to separate sludge solids from water. They combine gentle mechanical action with controlled drainage, making them effective for waste activated sludge and other biological sludges.

Key features:

• Stainless steel frame with filtering drum and spiral screw transport system
• Adjustable drum speed via frequency converters
• Drum can tilt up to 10 degrees for enhanced drainage
• Integrated washing capabilities for cleaning

How it works:

• Free water drains through drum perforations
• Spiral screw gently mixes and transports sludge
• Minimizes damage to biological activity

Selection criteria:

• Sludge type (primary, waste activated, digested)
• Inlet and outlet solids concentration
• Organic content
• Available space

Maintenance tips:

• Regular cleaning with pressure water jets
• Open design allows easy inspection and maintenance
• Skilled personnel needed for mechanical components

Rotary drum thickeners are ideal for continuous operation, handling variable feed conditions while maintaining high solids capture and preparing sludge for downstream dewatering or digestion.

Design Considerations and Selection Criteria

Choosing the right sludge thickening system depends on several practical and operational factors. Operators should consider these key aspects:

Plant Capacity and Flow Rates

• Large municipal plants often benefit from gravity thickening for primary sludge, thanks to economies of scale.
• Smaller facilities may opt for compact mechanical systems like centrifugal thickening or rotary drum thickeners, even if operating costs are higher.

Space Availability

• Existing plants with limited space often require mechanical systems with a smaller footprint.
• Gravity thickeners, while economical for new construction, may be impractical in retrofit situations.

Sludge Characteristics

• Primary sludge with good settling properties works well in gravity thickeners.
• Waste activated sludge (WAS) typically needs mechanical or flotation-based thickening.
• Mixed sludge streams may benefit from combined approaches or chemical conditioning.

Downstream Process Requirements

• Anaerobic digesters perform best with feed sludge containing 4% or higher total solids.
• Properly thickened sludge improves digestion efficiency, biogas production, and downstream dewatering performance.

Economic Factors

• Gravity thickening offers low operating costs but requires more space and may not suit all sludge types.
• Mechanical systems provide consistent results but involve higher energy use and maintenance.

Regulatory and Environmental Considerations

• Stricter discharge limits and resource recovery mandates favor systems that maximize solids capture and minimize water content.
• Some jurisdictions encourage energy recovery from biosolids, making effective thickening crucial for anaerobic digestion and sustainability goals.

Advanced Process Control (APC) and Optimization

Many plants can improve sludge thickening performance without major capital investment by using Advanced Process Control (APC) systems. These tools integrate real-time monitoring with automated strategies to optimize operations under varying conditions. Key benefits and capabilities:

• Real-time monitoring: Tracks solids concentration, flow rates, chemical dosing, and equipment performance.
• Operational adjustments: Enables operators to respond quickly to process upsets or changing influent characteristics.
• Performance improvements: Optimized feed preparation can improve methane yield by 10% or more, reduce chemical consumption by 53–75%, and increase energy self-sufficiency by 43–51%.
• Plant-wide integration: Coordination across thickening, digestion, and other treatment processes maximizes overall efficiency.
• Predictive maintenance: Data analytics and machine learning identify patterns to forecast equipment issues, helping operators prevent downtime and maintain optimal performance.

Using APC tools, wastewater plants can achieve consistent sludge thickening performance, improve energy recovery, and lower operating costs, all while maintaining compliance and reducing environmental impact.

Benefits and Challenges of Sludge Thickening

Primary Benefits

Sludge thickening delivers several immediate and long-term advantages for wastewater treatment plants:

• Significant volume reduction: Increasing solids concentration from 2% to 6% can reduce sludge volume by around 67%, improving handling efficiency and cutting transportation costs.
• Enhanced anaerobic digestion: Feed sludge with 4% or higher total solids stabilizes digestion, boosts biogas production, and improves volatile solids destruction, supporting energy recovery.
• Improved energy efficiency: Optimized thickening increases methane yield, helping plants move toward energy self-sufficiency and lower operating costs.
• Reduced chemical use: Properly thickened sludge requires less polymer in dewatering, while digestion conditions remain stable, reducing the need for additional chemical adjustments.
• Better sludge stability and odor control: Efficient thickening prevents septic conditions, maintains aerobic conditions, and reduces odor issues, creating safer and more manageable working environments.

Common Challenges

Even with proper planning, sludge thickening presents operational hurdles:

• Variable sludge characteristics: Seasonal changes, industrial discharges, or storm events can impact performance, requiring ongoing monitoring and operational adjustments.
• Maintenance demands: Mechanical systems like centrifuges and rotary drum thickeners need skilled personnel for preventive maintenance and repairs.
• Chemical costs: Polymer use in DAF or centrifugal thickening can fluctuate with sludge characteristics and market prices, affecting operating budgets.
• Space constraints: Existing plants may struggle to accommodate large gravity thickeners, often requiring mechanical systems with higher costs.
• Operator expertise: Skilled training is critical. Inadequate knowledge can lead to poor performance, equipment damage, or safety risks.

Future Trends and Innovations in Sludge Thickening

Sludge thickening continues to evolve as facilities seek smarter, more efficient, and sustainable solutions. Here are some trends and innovations shaping the future:

• Forward osmosis membrane technology: This method uses osmotic pressure to remove water while keeping biological activity intact. It’s an exciting way to combine sludge thickening and initial digestion steps, potentially reducing equipment needs.
• Thermal-alkali-biofilm pretreatment: For high-solid, low-organic sludge, controlled heat and alkaline conditions improve dewaterability and enhance downstream biological treatment. Operators find it particularly useful for challenging waste streams.
• Resource recovery integration: Modern plants increasingly treat sludge as a valuable resource. Technologies now capture nutrients and energy from concentrated sludge, maximizing recovery of phosphorus, nitrogen, and biogas.
• Smart monitoring and AI: IoT sensors and machine learning help operators detect subtle changes in sludge thickening processes before they become problems. Predictive maintenance and automated control optimize performance while reducing downtime.
• Circular economy and sustainability focus: New approaches aim to minimize waste and maximize resource recovery. By focusing on sustainability, wastewater treatment plants can meet stricter environmental regulations while improving overall operational efficiency.

These innovations demonstrate how forward-thinking facilities are turning waste sludge into a resource, improving efficiency, reducing costs, and supporting long-term sustainability goals.
